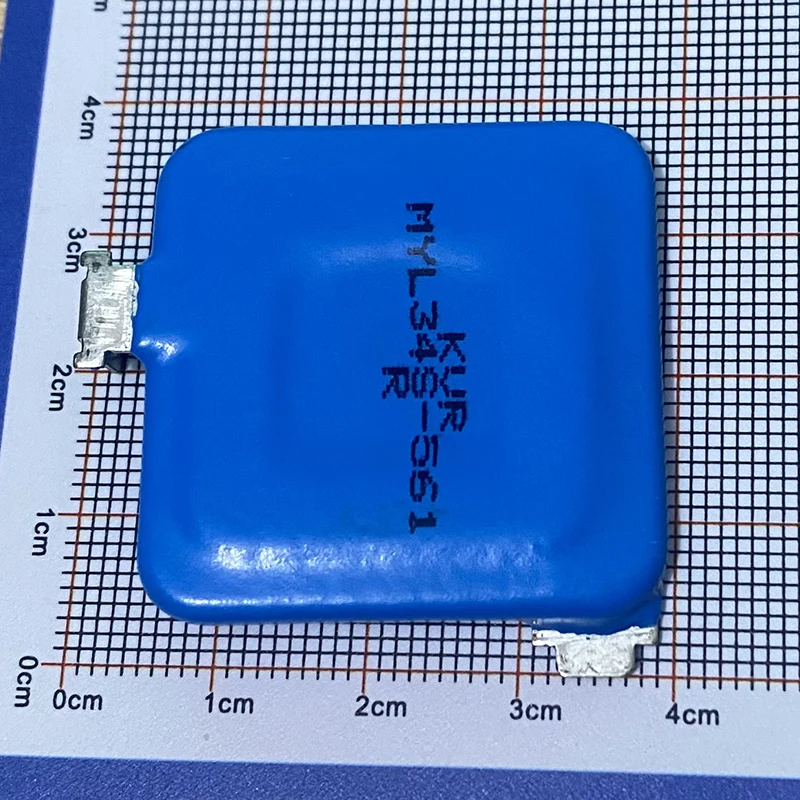

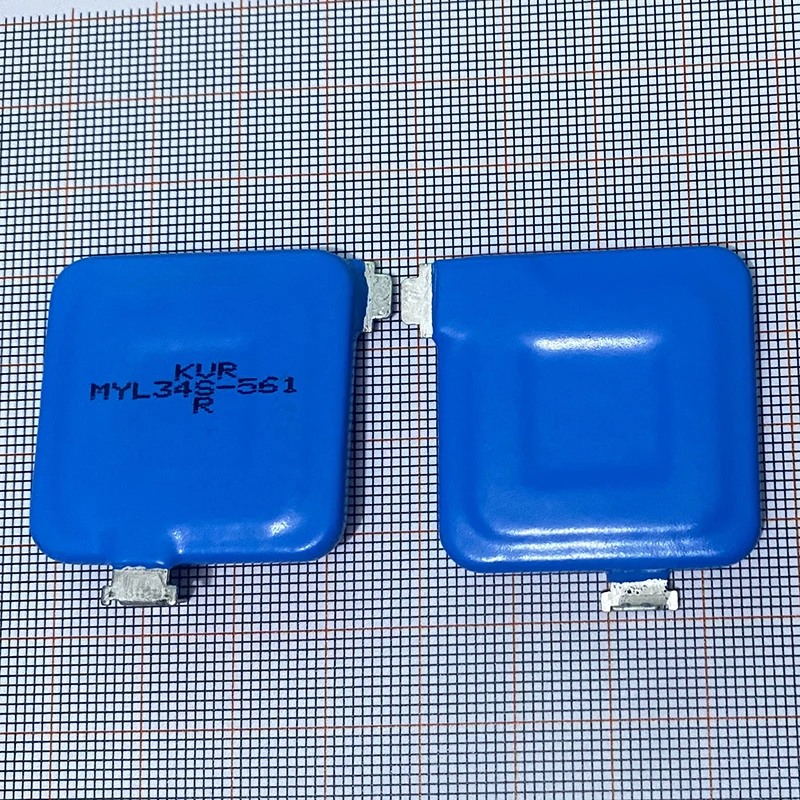

High Energy MOV Metal Oxide Varistor MYL34S-561 In20KA Imax45KA For SPD Surge Protection Device Voltage Protection

Name: High Energy MOV Metal Oxide Varistor MYL34S561 In20KA Imax45KA For SPD Surge Protection Device Voltage Protection
Brand: CNAMPFORT
Price: 1000 USD

Quality High Energy MOV Metal Oxide Varistor MYL34S-561 In20KA Imax45KA For SPD Surge Protection Device Voltage Protection for sale

Brand Name : CNAMPFORT

Model Number : MYL34S-561

Certification : ROHS

Place of Origin : Dongguan,Guangdong,China

MOQ : 1000

Price : 1000

Payment Terms : T/T

Supply Ability : 10kkpcs per month

Delivery Time : 2-3 weeks

Packaging Details : Bulk

Product Name : Varistor For SPD

Termination Style : Welding

Voltage Rating AC : 350V

Maximum DC Volts : 460 VDC

Clamping Voltage : 925V

Peak Surge Current : 45KA

Contact Now

High Energy MOV Metal Oxide Varistor MYL34S-561 In20KA Imax45KA For SPD Surge Protection Device Voltage Protection

Varistors are used to protect a circuit from high voltage surges. When a high voltage surge is applied to a circuit, the outcome is usually catastrophic to the circuit. A capacitor may be installed across the signal lines. However, this capacitor cannot suppress voltage surges.

High Energy MOV Metal Oxide Varistor MYL34S-561 In20KA Imax45KA For SPD Surge Protection Device Voltage Protection

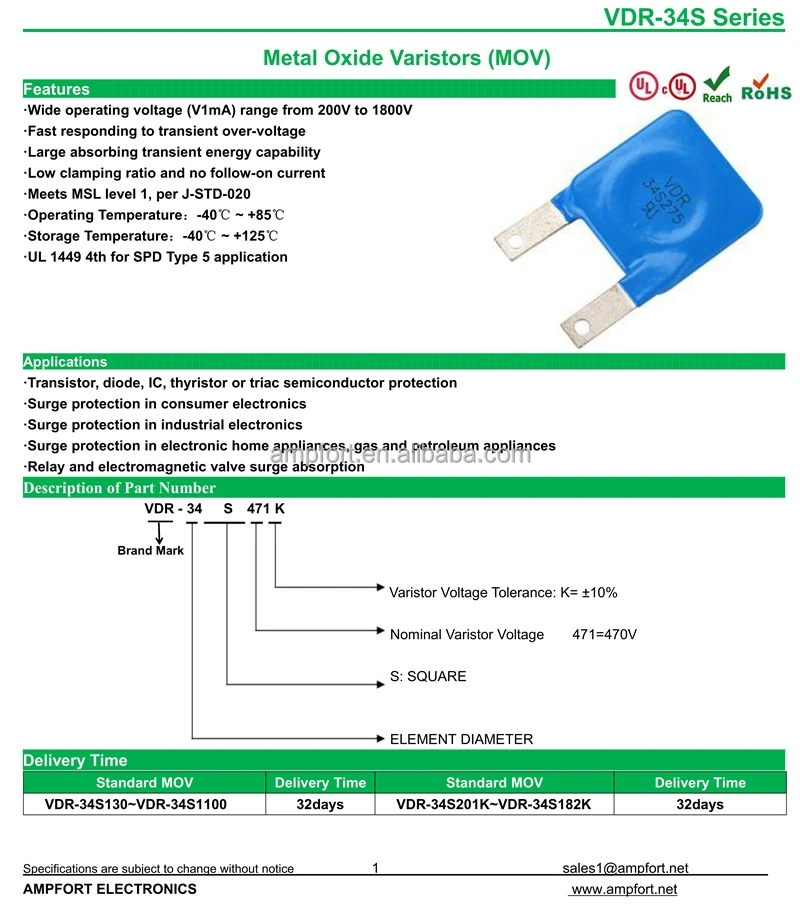

Wide operating voltage (V1mA) range from 82V to 1600V

Fast responding to transient over-voltage

Large absorbing transient energy capability

Low clamping ratio and no follow-on current

Meets MSL level 1, per J-STD-020

Operating Temperature:-40℃ ~ +85℃

Storage Temperature:-40℃ ~ +125℃

Transistor, diode, IC, thyristor or triac semiconductor protection

Surge protection in consumer electronics

Surge protection in industrial electronics

Surge protection in electronic home appliances, gas and petroleum appliances

Relay and electromagnetic valve surge absorption

High Energy MOV Metal Oxide Varistor MYL34S-561 In20KA Imax45KA For SPD Surge Protection Device Voltage Protection

ITEM NO.	MAXIMUN RATING(85℃)				SPECIFICATION(25℃)
	Continuous Voltage		Energy	Peak Current (8/20μs)	Varistor Voltage(lmA DC)			@Ip Clamping Voltage		Typical Capacitance
	VRMS	VDC	WTM(J)	Peak Current (8/20μs)	Varistor Voltage(lmA DC)			@Ip Clamping Voltage		Typical Capacitance
	VM(AC)(V)	VM(DC)(V)	(10/1000μs)	Imax(kA)	Min(V)	VN(DC)(V)	Max(V)	Vc(V)	Ip(A)	F=1KHz(pF)
34S-201	130	175	310	40	184	200	224	340	300	7900
34S-221	140	180	330	40	198	220	242	360	300	7200
34S-241	150	200	360	40	216	240	259	395	300	6600
34S-271	180	230	390	40	255	270	300	455	300	5600
34S-331	210	270	430	40	297	330	363	550	300	5000
34S-361	230	300	460	40	326	360	396	595	300	4400
34S-391	250	330	490	40	354	390	429	650	300	4100
34S-431	275	360	550	40	389	430	466	710	300	3800
34S-471	300	390	600	40	425	470	517	790	300	3400
34S-511	320	420	640	40	462	510	558	850	300	3200
34S-561	360	470	710	40	522	560	625	950	300	2900
34S-621	390	505	800	40	558	620	674	1025	300	2600
34S-681	420	560	910	40	612	680	736	1120	300	2400
34S-751	460	615	920	40	675	750	815	1240	300	2200
34S-781	480	640	930	40	702	780	858	1300	300	2100
34S-821	510	675	940	40	738	820	888	1350	300	2000
34S-911	550	700	960	40	819	910	933	1400	300	1800
34S-951	580	735	1000	40	855	950	988	1500	300	1700
34S-102	620	800	1040	40	900	1000	1080	1650	300	1600
34S-112	680	860	1100	40	990	1100	1180	1800	300	1500
34S-122	750	970	1200	40	1080	1200	1320	2000	300	1300
34S-142	880	1150	1300	40	1260	1400	1520	2200	300	1100
34S-162	1000	1200	1400	40	1440	1600	1688	2550	300	1000

High Energy MOV Metal Oxide Varistor MYL34S-561 In20KA Imax45KA For SPD Surge Protection Device Voltage Protection
